DIY Single-chip 2D Retro Game Console





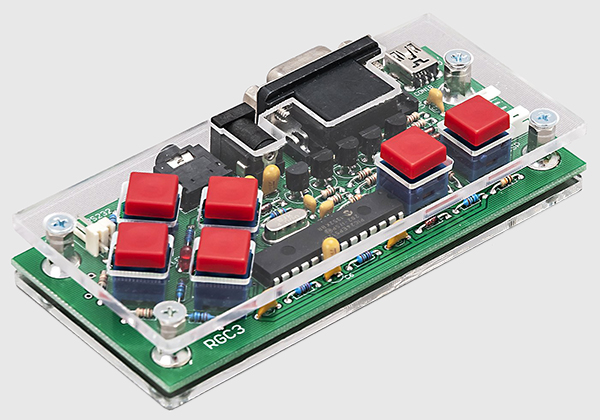

This DIY project offers the simple stand-alone VGA game console which is based on PIC24EP512GP202 microcontroller. As the video signal and the corresponding sync signals are generated by software, the console contains a minimum of hardware. There is also an audio signal output with five binary tone channels, mixed by a passive resistor network. Two of those channels are used for sound effects, similar to ones used in video games of that time (early eighties) and three for background music. This output is capable of driving line output for PC speakers or headphones.

It should be noted that there is no video processing unit, PGA or any special purpose chips, and that PIC microcontrollers are not designed for video signal generation. Everything is achieved by a series of different design tricks and some compromises.

This is an open hardware and open software project. Video and audio generators, which are the vital parts of the firmware, are the parts of the operating system, which will soon be documented, and can be used for any other game or application. As the timings are critical, those parts are written in assembly language, but all the other parts of the program (scenario for some other games or any other application) may also be written in some other programming language, preferably Microchip's C. In this case all parts are written in Assembler, but only as a result of author's preference.

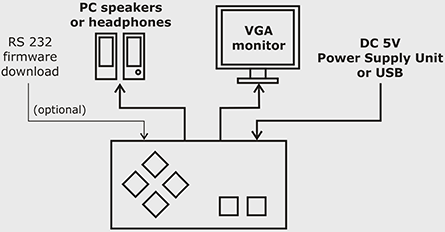

At the moment, only the game Jumping Jack is written for the platform, well known to those who played with the Spectrum personal computer back in the day. However, once a new game is created, it is easy to download it from the computer, via the serial port. The console has a USB connector, but it is used only for 5V power supply. Unfortunately, microcontrollers which are packed in DIP packages (with thru-hole soldering, convenient for DIY projects and workshops) do not have USB interface but only serial ports, so you have to use RS 232 to download the new game instead of Jumping Jack, which is deafult in this project.

If you want to build this console, you need the PCB and components which are listed here. To program the microcontroller, you should need a PIC programmer (e.g. PICKIT3, avaliable here) and MPLAB X IDE software, available here. But if you want to know how PIC generates video and audio signals by software in real time, or even if you feel ambitious enough to create your own game for this platform, please visit the next page

     WARNING: THIS PROJECT IS COPYLEFTED

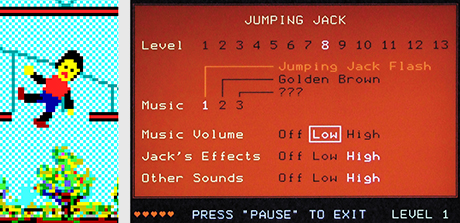

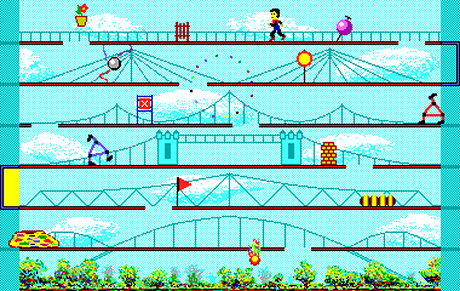

Note: The game does not run on PC but on stand-alone unit, so the third screenshot is taken by camera from VGA monitor. The first two screenshots are simulated using original game design images.
